Product Introduction
This 24-watt LED panel light has a super thin design. It is only 1.9cm thick. It has the following functions: DIP power adjustment, DIP color temperature, SCR dimming, radar sensing, and WIFI. If you just want a single-color temperature lamp without any function, you can also contact us for a quote.
Product Specification
Model No. | Size(A*Bmm) | Power (W) | Flux(LM) | Voltage(V) | PF | CRI | Beam Angle |
PCB-170-12W | 170*19 | 12 | 1190 | 165-265 | 0.7 | 80 | 120° |
PCB-220-18W | 220*19 | 18 | 1880 | 165-265 | 0.8 | 80 | 120° |
PCB-330-24W | 330*19 | 24 | 2565 | 165-265 | 0.8 | 80 | 120° |
PCB-330-30W | 330*19 | 30 | 3255 | 165-265 | 0.9 | 80 | 120° |
Functions
(1) 3 kinds of color temperature can be adjusted: warm color - natural color and cool light. This function can save the purchase cost of the buyer. A lamp that only needs to purchase one function with three color temperatures can meet the needs of many customers.
(2) Traic dimming: It can give customers a good experience and can adjust the brightness according to different atmospheres. You can install the dimmer at home and it's ready to go.
(3) Radar sensor: Within a range of 5-8 meters, when you walk by, the light will be on for 40 seconds. The lamp has a built-in 5.8G radar sensor module, which has excellent sensitivity and does not require sound (clapping, stomping, etc.) to light up the lamp, and will not disturb other people.
Features:

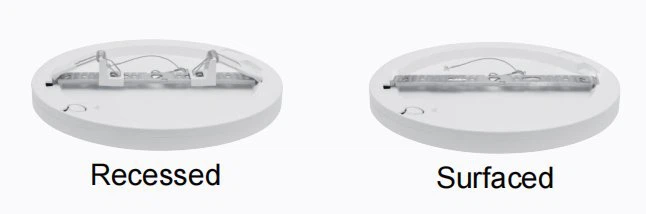

(1) It has two installation methods. The first type is surface mounted, without opening. The second is embedded installation, so holes need to be opened before installation. You can choose as flexible as you need. We provide kits for installation, no need to worry about missing parts to install.
(2) High-brightness CRI80 technology: It has a good lighting output effect and restores the real color of the object.
(3) Energy saving and bright: The PF of this lamp can reach more than 0.8, which conforms to the ERP standard. 24W lumens reach 2565m, 30W reach 3255lm. This shows that it meets the standard of energy saving and brightness. It also lets consumers use less energy, which reduces your electricity bill by more than 90%.
Topjet Lighting
(1) We have our own private lamp manufacturing factory. We are not a trading company, our factory has about 300 people.
(2) The lamp has the following certifications: CE, ERP, ROSH, TUV and so on.
(3) We mainly produce LED lights, 6W-30W panel lights, ceiling lights, 10W-50W wide panel lights, etc.
