Radar Sensor LED Panel
Microwave sensor type
Constant Current LED Driver Included
Material: PC&aluminium
Max.detection diameter radius:5-8m
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
This Radar Sensor LED Panel, with the advanced built-in microwave sensor, can detect the diameter radius is 5-8meters, the time delay is 40 seconds (can be customized per your real demand), detection range: 180°, the LED chips is SMD2835, whole light's input voltage range: 220V-230V; surrounding working temperature is -20 to 45°C.
We design ourselves the built-in constant Current LED Driver, and the material: PC&aluminium, IP rating is IP20.
Application

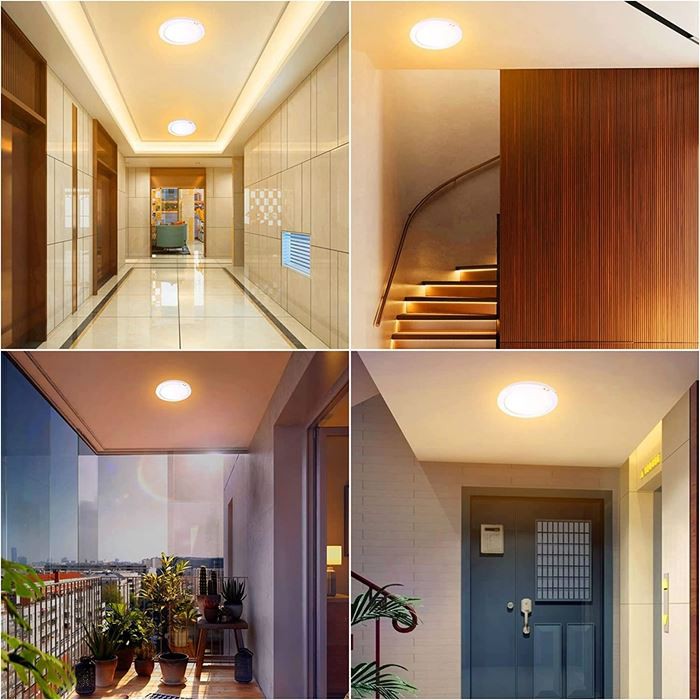

It is widely used in many applications, like the Corridor, Gateway, garden, shopping mall, etc. (quite popular in the market!)
Product parameter
There are three sizes of this Radar Sensor LED Panel, from diameter 170 mm, 220mm, and 330mm, many options for you! Besides, its advanced structure, with a fast built-in terminal connector, can save you the extra cost of the wire connectors and make the quick installation!
| Model No. | Size | Cutout | Power | Flux | Voltage | PF | CRI | Beam Angle |
PCB-170-12W | Ф170*19 | Ф65-155 | 12 | 900 | 165-265 | 0.8 | 80 | 120° | |
PCB-220-18W | Ф220*19 | Ф65-210 | 18 | 1500 | 165-265 | 0.8 | 80 | 120° | |
PCB-330-24W | Ф330*19 | Ф65-310 | 24 | 1500 | 165-265 | 0.8 | 80 | 120° | |
PCB-330-30W | Ф330*19 | Ф65-310 | 30 | 2100 | 165-265 | 0.9 | 80 | 120° |
How does it work? The radar sensor can work both days and night and customize it according to your request and automatically turn it on, or when you enter and leave the detective range of up to a radius of 5-8 meters and stays on for another 40 seconds after the movement ceases. The light turns off when nobody is detected. It's super convenient for the customers, to turn on your beautiful life!
Installations
It offers both recessed and surfaced mounting installation methods. You could flexibly select the most suitable way for installation.
Reports

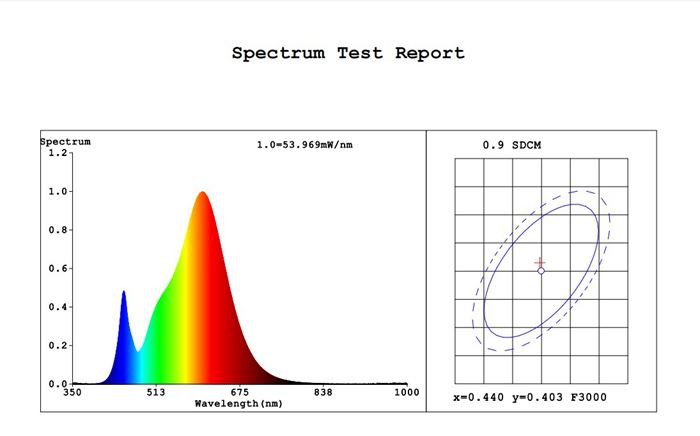

Below the details are the Test Reports of this Radar Sensor LED Panel: the Spectrum Test Report and the IES Test Report are less than 6 in the Spectrum Test Report, and the IES test Report is for your project reference!
