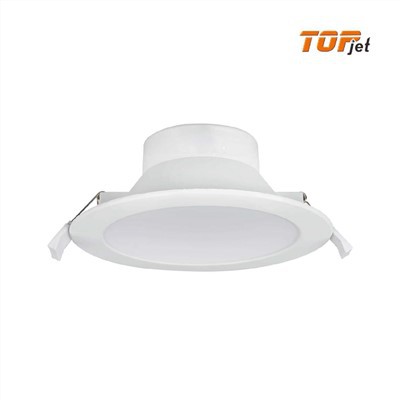

7W LED Downlight White
Function: CCT Changeable by Dip Switch、Traic Dimmable
Size: 2Inch、 3Inch、 4Inch、 6Inch、8Inch
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
High Brightness: The 7W LED Downlight White adopts the world's leading LED lamp beads, with higher lumen and lower power, which can save you up to 90% of energy costs.
Details
Model No. | Size | Cutout | Power | Flux | Voltage | PF | CRI | Beam Angle |
DL-2〞-7W | φ97*53 | φ75-80 | 7 | 560 | 165-265 | 0.7 | 80 | 100° |
DL-3〞-9W | φ115*58 | φ90-102 | 9 | 720 | 165-265 | 0.7 | 80 | 100° |
DL-4〞-12W | φ145*61 | φ120-130 | 12 | 1030 | 165-265 | 0.7 | 80 | 100° |
DL-6〞-18W | φ190*75 | φ155-170 | 18 | 1450 | 165-265 | 0.7 | 80 | 100° |
DL-8〞-25W | φ225*85 | φ195-210 | 25 | 2330 | 165-265 | 0.7 | 80 | 100° |
DL-8〞-30W | φ225*85 | φ195-210 | 30 | 2330 | 165-265 | 0.7 | 80 | 100° |
Original design: This 7W LED Downlight White CRI 80, highly restores the real color of the real object, effectively avoids color weakness, and can be used with confidence in the child's room.The shell and bottom cover of this product are made of high-quality PC material, and the product shape and power supply are independently designed by our professional engineers.
Function: CCT Changeable by Dip Switch can save SKU. The Traic Dimmable function 10%-100% smooth dimming, you can freely choose the brightness you want.
Installation steps:
Step 1 Turn off the power supply and drill a suitable hole as per cutout size.
Step 2 Connect the wires to “N” and “L”correctly.
Step 3 Push backward the spring clips and put into the ceiling.
Step 4 Install the lamp completely and then turn on the power supply.
High quality: This 7W LED Downlight have passed CE, TUV, ROHS, SAA, CB certification, and our factory has a complete quality management system, which is controlled at every level. 100% aging test of the product.
