Recessed LED Luminaire
Voltage(V): 165-265
Size:3"-5"-7"-8"
Color Temp:3000K-4000K-6500K
CRI≥80
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

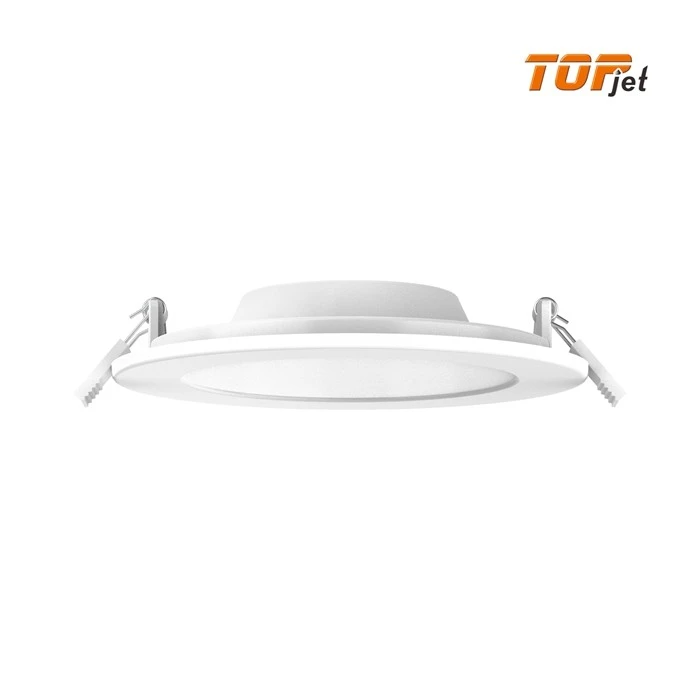

This recessed LED luminaire is made of high-quality PC material, it is IP20 grade. We can also do the IP44 grade. It has surface-mounted and recessed mounting methods and round and square shapes. This article mainly introduces circular recessed lights. If you are interested in other LED products, welcome to our website to check.
Product Specification
Model No. | Size | Cutout | Power | Flux | Voltage | PF | CRI | Beam Angle |
RP-3〞-6W | 115*32 | 100-110 | 6 | 400 | 165-265 | 0.7 | 80 | 120° |
RP-4〞-12W | 170*32 | 150-160 | 12 | 900 | 165-265 | 0.8 | 80 | 120° |
RP-7〞-18W | 220*32 | 200-210 | 18 | 1500 | 165-265 | 0.8 | 80 | 120° |
RP-8〞-20W | 240*32 | 220-230 | 20 | 1600 | 165-265 | 0.8 | 80 | 120° |
RP-8〞-24W | 240*32 | 220-230 | 24 | 3100 | 165-265 | 0.8 | 80 | 120° |
Functions
(1) 3 kinds of color temperature can be adjusted: there is a dial button on the back of this light, you can adjust the warm color (3000K), natural color (4000K), and cool color temperature (6500K) through this button. This light can create different comfortable atmospheres, to meet your daily needs.
(2) Traic Dimmable: This lamp can adjust the brightness of the lamp, from 10%-10% brightness. It is compatible with most household dimmers. This function can be used in a variety of environments. For example, if you want to hold a video conference at home, you can adjust the brightness of the light to 100%, which is more conducive to concentrated study.
(3) PIR Sensor: In the dark night, as long as you pass by, this recessed LED luminaire will automatically turn on for 40 seconds. If no one is detected, it will automatically shut down. It is very energy efficient, green, and environmentally friendly, and also saves your electricity bills.
Features
(1) The lighting area of 6W lamp is as high as 90㎡. It is perfect for any modern and classical style space design. Gallery, showroom, kitchen, hallway, living room, bedroom, bathroom, balcony and other places are very suitable.
(2) Ultra-thin and easy to install: This light is an ultra-thin design, its thickness is only 3.2cm thick. Light weight, small size, and easy installation. Before installation, a circular hole can be installed in the ceiling, and there are 4 opening sizes to choose from. For the specific installation steps, please refer to the following figure.
(3) CRI80+: This ceiling light has a CRI80+ rating, which makes the light output closer to the true color of the object, giving consumers a more vivid lighting effect.
About us:
(1) Our factory covers an area of 35,000 square meters and mainly produces LED lamps, including indoor and outdoor ceiling lamps, panel lamps, wide panel lamps, solar lamps, etc.
(2) All Topjet lamps are mainly exported to Europe, Australia, South America, Asia, and other places.
(3) All lamps are certified, such as EMC, LVD, new ERP, and other certifications. We promise small samples and large quantities, and we all products according to these standards.
